Name: 77kw 103hp Transmission Line Stringing Equipment Hydraulic Puller Cummins Engine
Brand: Boyu
Price: 1 USD

Brand Name : Boyu

Model Number : TY40

Certification : ISO9001

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 100sets/month.

Delivery Time : 15~25 days

Packaging Details : Container

Type : Hydraulic Puller

Max intermittent pull : 40kN

Diesel : 77kw(103hp)

Overall dimension : 3600×2600×2200mm

Engine : Cummins

Max diameter of rope reel : 1200mm

Pull at max speed : 20kN

Main pump : German Rexroth

Contact Now

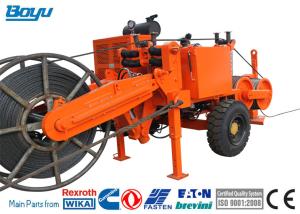

Transmission Line Stringing Equipment TY40 77kw(103hp) Hydraulic Puller Cummins Engine

Model		TY40	TY60	TY120	TY150	TY220	TY280	TY380
Max intermittent pull	KN	40	60	120	150	220	280	380
Max continuous pull	KN	30	50	100	120	180	250	350
Speed at max pull	km/h	2.5	2.5	2.5	2.5	2.5	2.5	2.5
Max speed	km/h	5	5	5	5	5	5	5
Pull at max speed	KN	20	25	50	60	90	120	170
Diesel	kw(hp)	77(103)	77(103)	129(173)	129(173)	239(320)	298(400)	440(590)
Cooling system		Water
Electrical system	V	24
Bull-wheel diameter	mm	400	450	600	600	760	960	960
Groove number		7	7	10	10	10	11	11
Max rope diameter	mm	16	18	24	24	30	38	38
Max diameter of rope reel	mm	1200	1400	1400	1600	1600	1600	1900
Total weight	kg	3000	3500	4800	5500	6800	12800	13600
Overall dimension	mm	36002600 2200	38002100 2300	40002300 2300	43002300 2400	53002360 2750	58002300 2700	60002600 2800

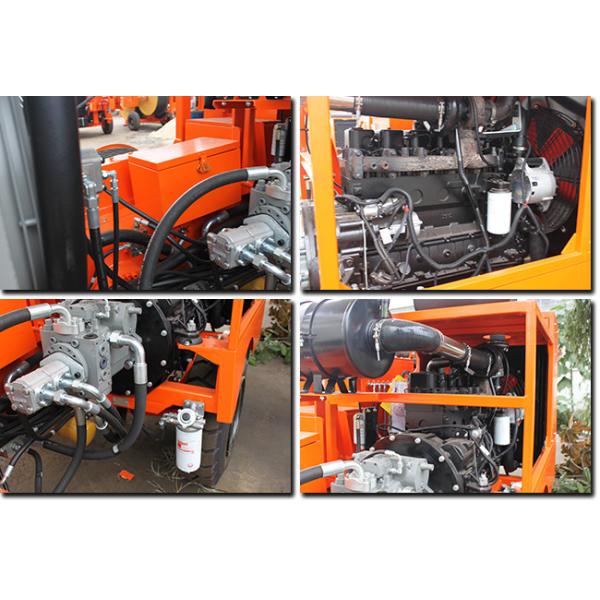

Engine		Cummins
Main pump		German Rexroth
Main motor speed reducer		German Rexroth
Tail bracket hoisting motor		American Eton
Hydraulic meter		German
Operating handle		German Rexroth
Tail bracket hydraulic valve		Atos Italy

TY120 Hydraulic Puller	This machine allows for the tension stringing of twin-bundle conductor of 500mm2 and below in mountainous and hilly areas, of twin-bundle conductor of 630mm2 and below in flat lands, and of single conductor 720mm2 in various terrains; besides, it can be used for traction stringing of OPGW or ADSS optical cable and 220kV haulage rope in various terrains.
Configuration	On board reel winder with automatic level wind, suitable for standard reel mod. 1100 and 1200 Manual front stabilizer Grounding connection point Hydraulic dynamometer with set-point and automatic control of maximum pull Hydraulic oil cooling system Control instruments for hydraulic system and diesel engine

Additional Devices	Lighting system for the trailer Hydraulic rope clamp for reel change Swivel guide rope roller Trailer for towing at max speed of 30 km/h Extra shaft Digital speed and meter counter (extra charge)
Hydraulic Transmission	Closed hydraulic circuit for step less speed variation in both rotating directions. This machine is provided with a pull pro-setting system that maintains the pre-set pulling value (also when the speed is reduced to "0") by automatically adjusting the operation speed according to the friction and unexpected loads which may occur.
